SmartSat Benchtop XL

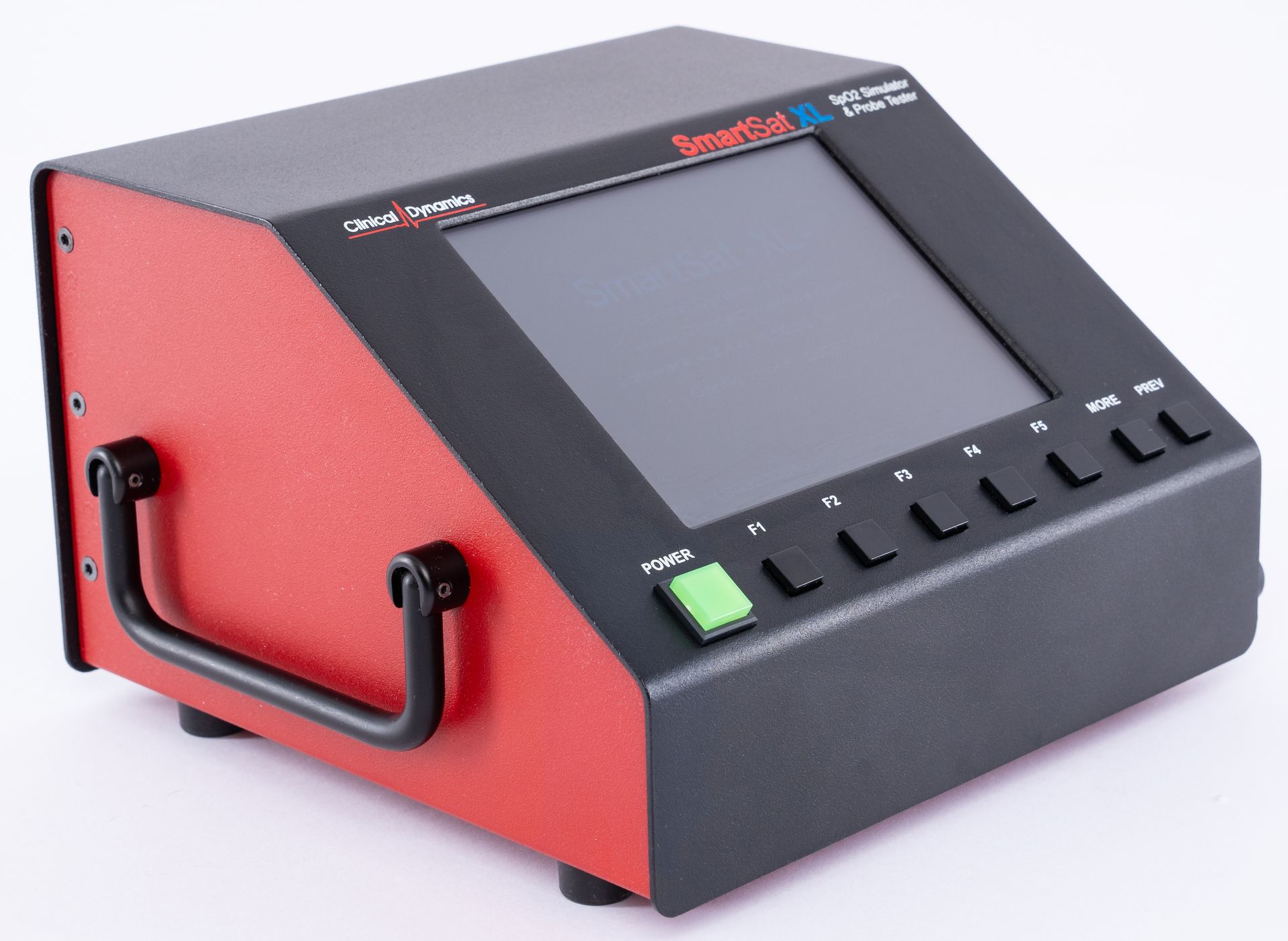

Red and black electronic control panel with a touchscreen and buttons on a bench case

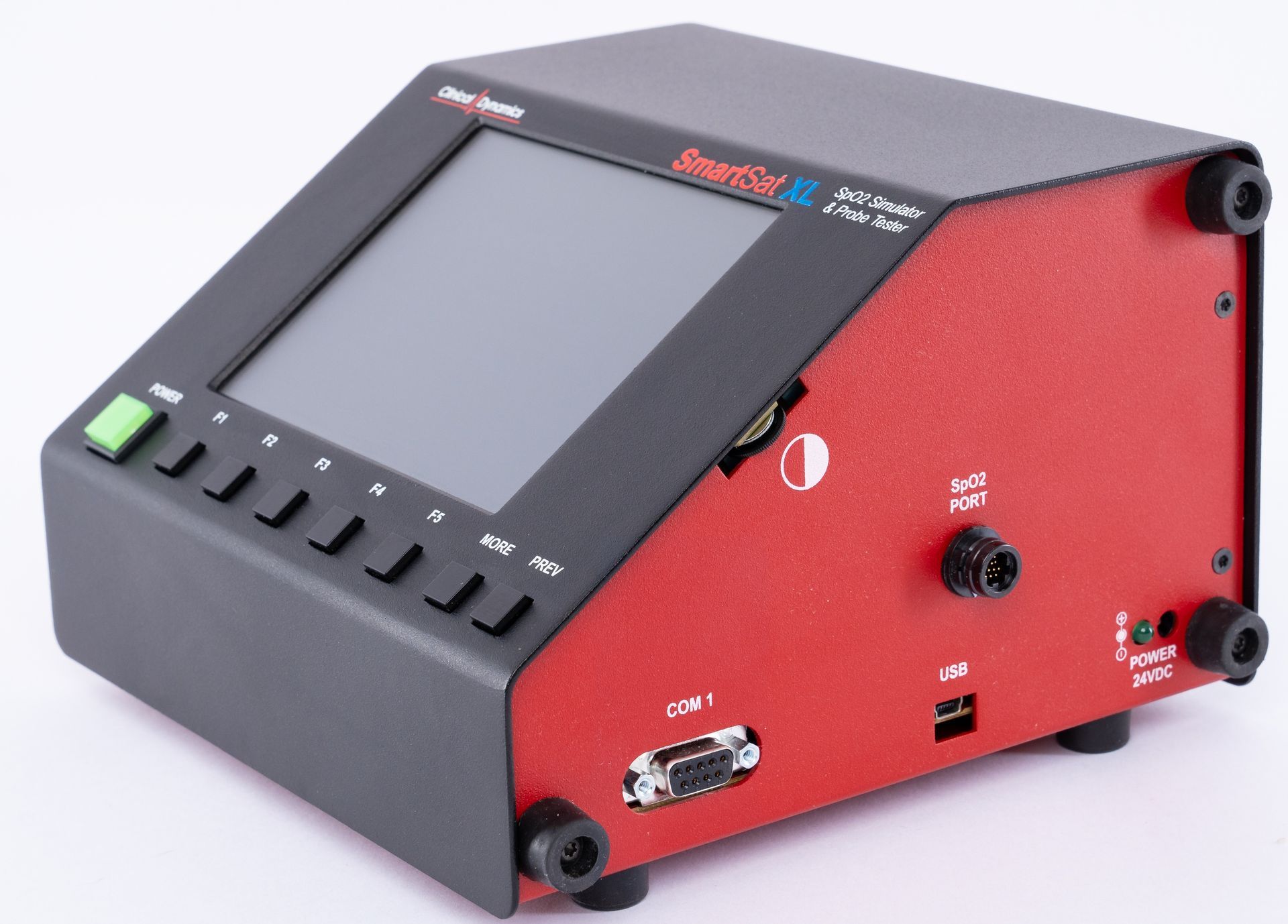

Black and red desktop electronic device with a screen and multiple buttons on a white background

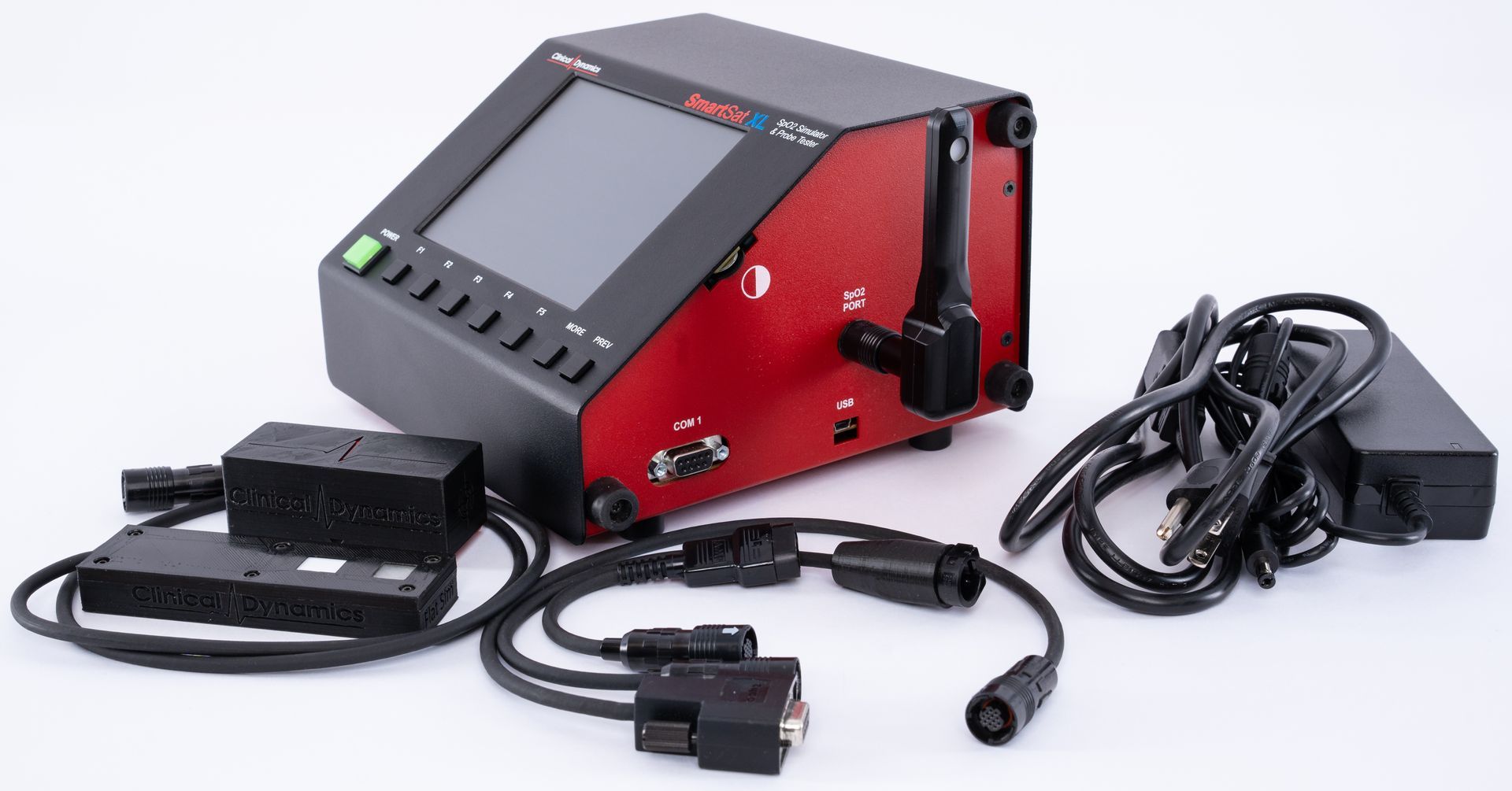

Black-and-red electronic device with screen, knobs, cables, and power adapter on a white background

* The Gold Standard in Oximetry Testing

The SmartSat Benchtop XL Oximetry Analyzer is an SpO2 simulator combined with a multi-function Oximeter Probe analyzer. SmartSat Benchtop XL allows the user to adjust the oximeter R-curve, saturation rate, heartrate and pulse modulation. Additionally it provides the user a setting to adjust simulated ambient light interference and simulated cardiac Arrhythmias. The SmartSat Benchtop XL system includes multiple R-Curves to ensure accurate SpO2 simulation on a variety of Oximeter brands. The Continuity and Sensitivity test for Oximeter probes allows the user to ensure proper probe function and performance.


Features include:


  • SpO2 simulator (Motion Artifact, Ambient light and Arrhythmia settings)
  • Probe Continuity Tester
  • Probe Sensitivity Tester
  • Auto Sequencer for multi-step testing
  • PC based remote control (Serial RS232)


Manufacturer specific R-Curves:


  • Covidien/Nellcor
  • CSI-Spot
  • DataScope
  • Datex
  • HP
  • Masimo
  • Nellcor
  • Nellcor Oximax
  • Nihon Kohden
  • Nonin
  • Novametrix
  • Philips
  • Sensormedics
  • Smiths/BCI


Specs:


  • Internal Battery: Lithium Ion (Li-ion)
  • External Power Supply
  • Dimensions: 8" long, 8" Wide and 5" High
